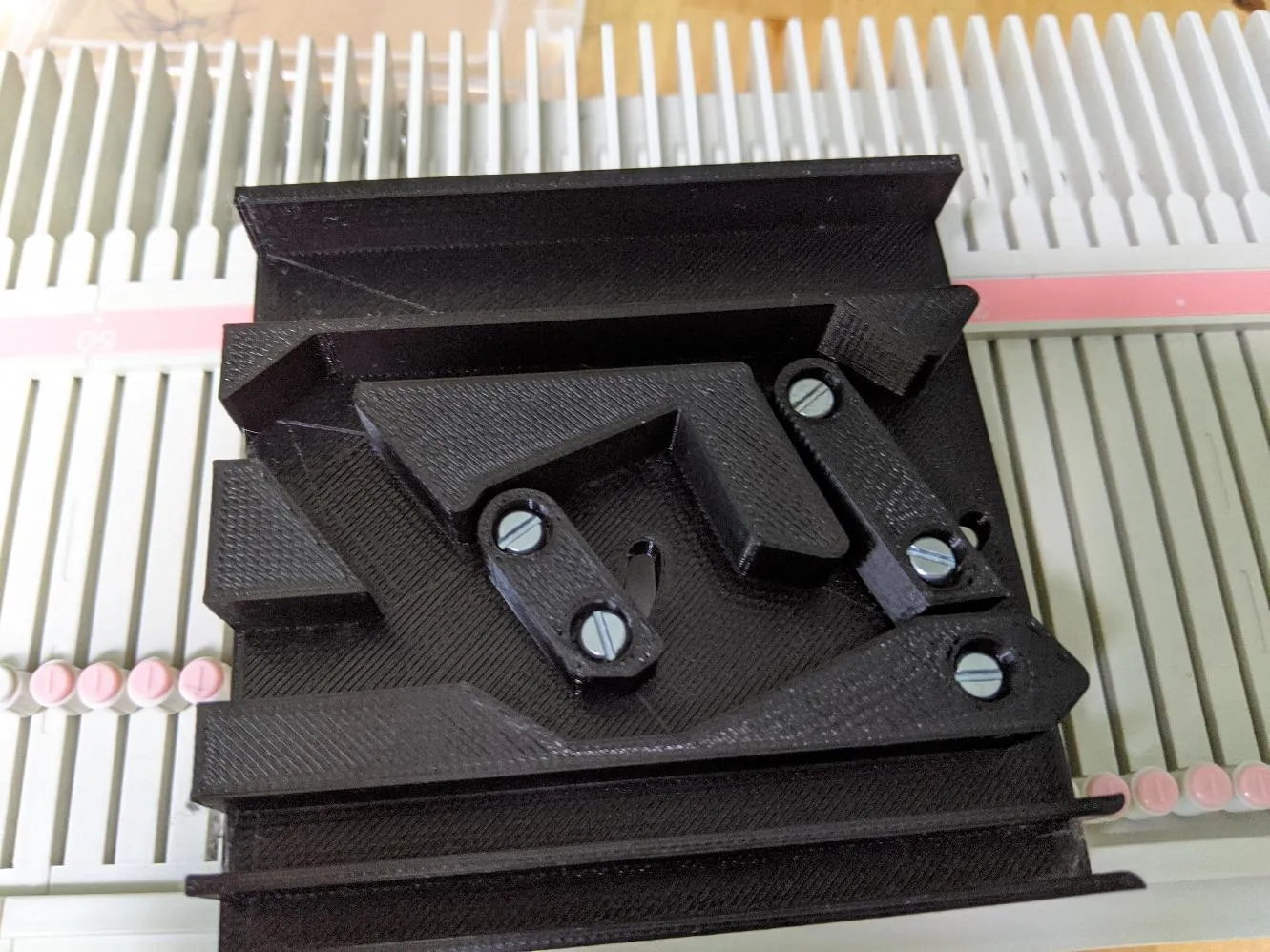

Knitting Machine: Needle Movement Controller First Test Print

I decided it was time to try out the prototype design! I printed half of the needle movement model to save on time and materials. As a result you need to move the carriage in both directions to see the full needle movement. I also adjusted the design slightly, adding in some fillets to roundContinue reading “Knitting Machine: Needle Movement Controller First Test Print”

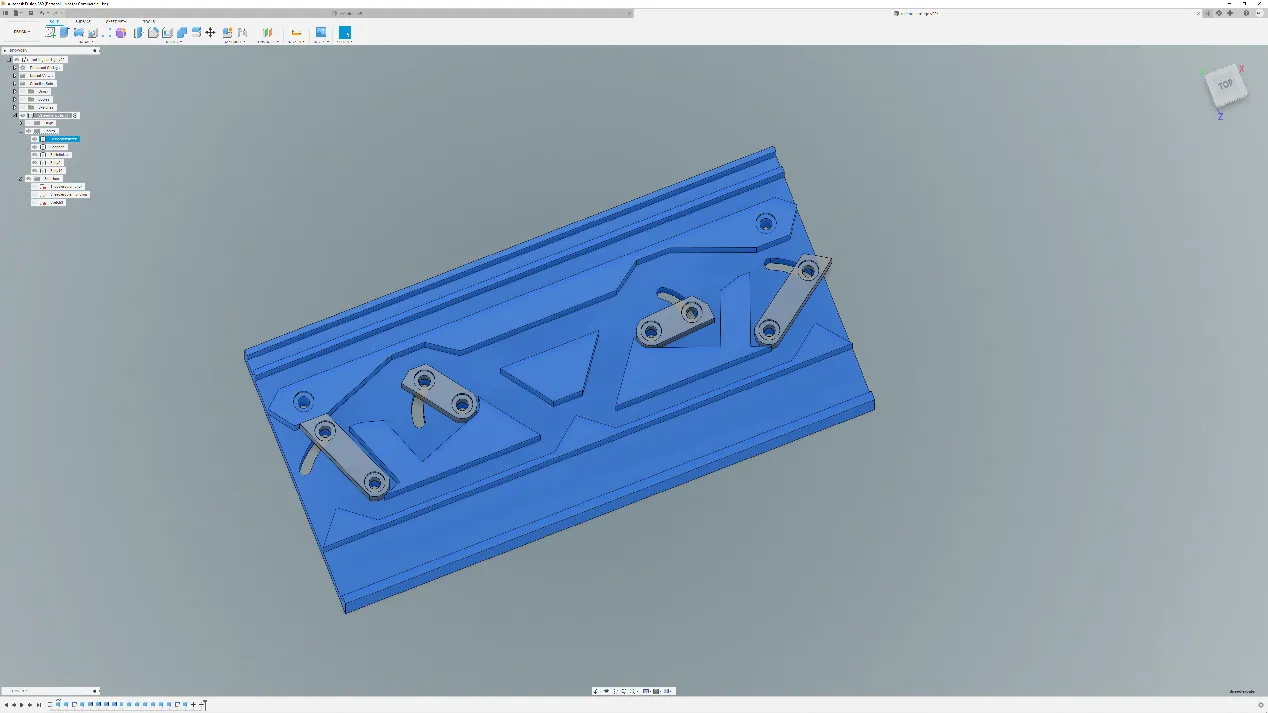

Knitting Machine: Needle Movement Model

I spent some time this evening turning the sketch into a proper Fusion360 3D model, as above. Key features: I’ve inserted holes for all the M3 bolts I need to use to hold the moving parts together. I’ve also added some more chunks of plastic to try to prevent needles getting stuck. I’ve already gotContinue reading “Knitting Machine: Needle Movement Model”
